In the realm of security, ensuring your guards are consistently vigilant and performing their duties diligently is paramount. The human element, however, can be prone to fatigue and complacency. This is where the Rosslare Guard Patrol System steps in as a robust and reliable solution, providing a comprehensive platform for effective guard monitoring and tour management. Designed to offer peace of mind, this system eliminates guesswork and provides irrefutable evidence of patrol activities, helping you ensure your security personnel are always on point and never sleeping on the job.
How it Works: A Seamless, No-Wiring Solution
The beauty of the Rosslare Guard Patrol System lies in its simplicity and the fact that it requires no complex wiring for its installation. The system operates on the principle of portable data collection. Location tags are strategically placed at various checkpoints along the patrol route. The guard, equipped with a handheld data acquisition reader, simply touches or scans these tags at designated times. This action records the time and date of the scan, creating an irrefutable log of their presence at that specific location.
Once the patrol is complete, the reader is docked, and the collected data is effortlessly transferred to the management software for analysis and report generation. This wireless operation simplifies deployment, making it ideal for both existing structures and new installations without the hassle and cost of laying down extensive cabling.
Key Components and Their Features
The Rosslare Guard Patrol System is comprised of several interconnected components, each playing a vital role in its overall functionality:
1. GC01 – Data Acquisition Reader (The Guard’s Companion)
The GC01 is the core of the system, a highly rugged and waterproof handheld reader designed for the rigors of guard patrol.
- Features:
- High Capacity Rechargeable Internal 1800 mAh Lithium-ion Battery: This is a standout feature, providing exceptional endurance. A single full charge can deliver over 300,000 reads or up to 6 months of continuous use before requiring a recharge. This ensures the reader remains operational for extended patrol shifts without frequent charging.
- High Capacity Non-Volatile Memory: The GC01 can store up to 8,000 event reads with time stamps in its internal memory. This ample storage capacity ensures that even for long and extensive patrol routes, all data is securely captured before being downloaded.
- Rugged and Waterproof (IP68 Rated): Built to withstand harsh environments, the GC01 is designed to be highly durable and resistant to dust and water, even capable of being submerged in 1 meter of water without damage.
- Three Modes of Notification: Provides clear confirmation of successful tag reads through vibration, visual (360-degree LED array), and audio beeps.
- Low Battery and Memory Full Alerts: Notifies the guard and system administrator when the battery is low or memory is nearing capacity, preventing data loss.
- Polycarbonate and Carbon-Hardened Stainless Steel Casing: Ensures lightweight portability and exceptional durability.
- Tamper Evident Seals: Enhance security and prevent unauthorized tampering with the device.
- Working: The guard carries the GC01 and touches or scans the GA01B location tags at various checkpoints. The reader records the unique ID of the tag along with the precise date and time of the scan.
2. GA06 – Leather Belt Holster
The GA06 is a practical accessory designed to enhance the guard’s comfort and convenience while on patrol.
- Features:
- Rugged Quality Leather: Built for long-lasting wear and tear, ensuring durability in demanding environments.
- Button Clip: Securely holds the GC01 reader, preventing accidental drops and providing easy access.
- Belt Wearable: Allows the guard to comfortably carry the GC01 on their belt, keeping their hands free.
- Working: The GA06 provides a secure and accessible way for guards to carry their GC01 reader throughout their patrol, ensuring it’s always at hand for scanning checkpoints.
3. GC02 – Data Acquisition Reader Base
The GC02 serves as the central hub for data transfer and charging.
- Features:
- Spring-Loaded Contacts: Ensures easy and secure docking of the GC01 reader.
- Built-in AC-DC Adapter and Fast Charger: Rapidly recharges the GC01’s 1800 mAh lithium-ion battery.
- RS-232 Interface to PC: Facilitates the direct transfer of collected patrol data from the GC01 to a computer.
- Built-in ID Chip Reader: Allows for the enrollment and recording of location, event, and user tag data directly at the base station.
- 3-Color LED Battery-Status Indicator: Provides a clear visual indication of the GC01’s charging status (Orange: not docked, Red: charging, Green: fully charged).
- Rugged ABS Plastic Construction: Ensures durability for desktop or wall-mounted use.
- Working: After completing a patrol, the guard docks the GC01 into the GC02. The GC02 then initiates the charging process for the GC01 and, simultaneously, transfers all the accumulated patrol data to the connected PC for processing and reporting.
4. MD24U – USB to RS232 Converter Cable
The MD24U is a crucial link in connecting the GC02 to modern computers.
- Features:
- USB to RS-232 Converter: Bridges the gap between the RS-232 serial port on the GC02 and the USB ports commonly found on contemporary computers.
- Wide Operating System Compatibility: Supports various Windows operating systems (Windows 7, Vista, XP, Server 2003/2008, XP Embedded, CE) and Mac OS-X.
- High Transfer Rate: Enables efficient data transfer from 300 bps up to 3 Mbps.
- USB Powered: Draws power directly from the USB port, eliminating the need for an external power supply.
- Working: The MD24U connects the GC02’s RS-232 serial output to a USB port on your computer, enabling the data transfer from the GC01 reader to the reporting software.

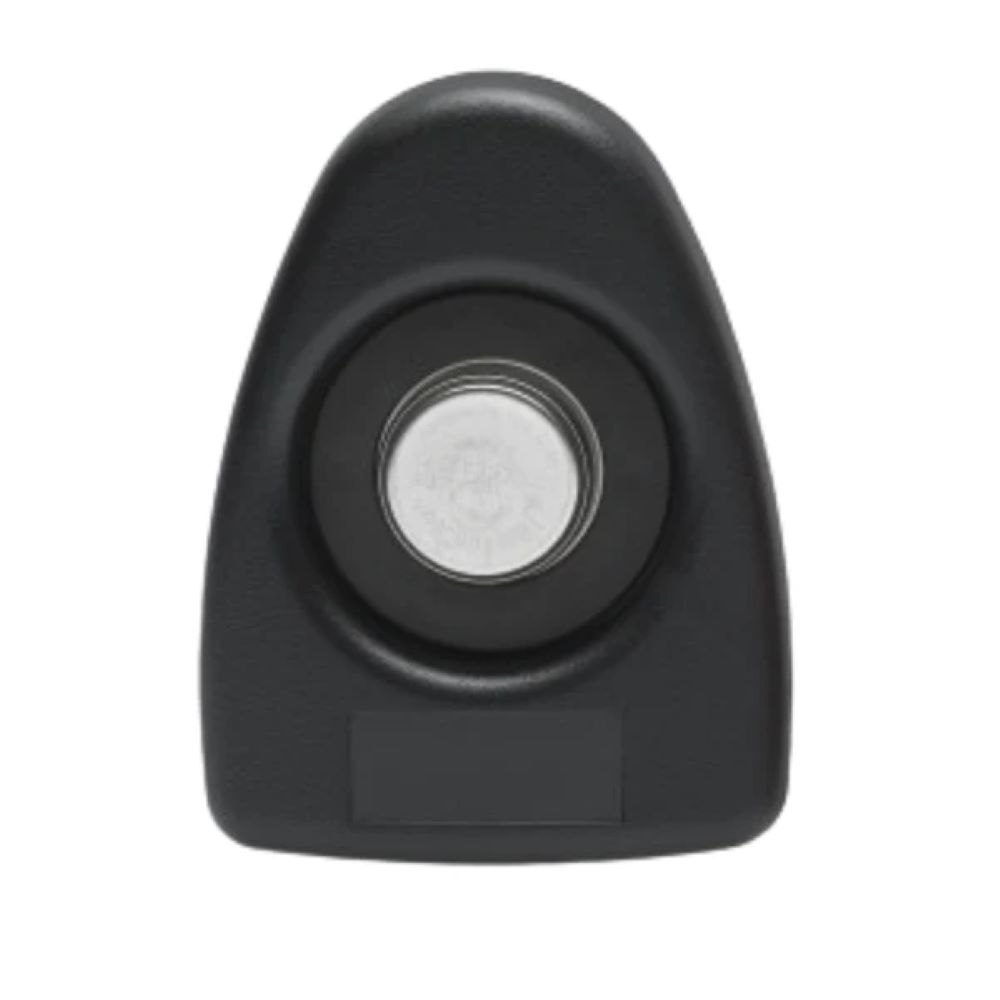

5. GA01B – Location Tag
These are the silent sentinels that define the patrol route.
- Features:
- Durable, Highly Rugged & Waterproof (IP68 Rated): Designed to withstand outdoor conditions and various environmental challenges.
- Unique, Factory-Programmed Codes: Each tag possesses a unique, unalterable 16-byte ID code, with a staggeringly low chance of duplication (1 in 300 billion). This ensures the integrity and uniqueness of each checkpoint.
- Easy to Use: Simple to install and interact with for the guard.
- Versatile Mounting: Can be easily attached to any solid, flat surface using screws, glue, or double-coated tape.
- Lightweight, Portable Key Fob with Keychain Attachment (Optional): Some GA-01 variants can also function as key fobs for personnel identification.
- Working: The GA01B tags are strategically placed at all critical points that need to be visited and checked during a guard’s patrol. When the GC01 reader scans a GA01B, it records the unique identifier of that specific location.
Feature-Rich Software for Report Generation
The true power of the Rosslare Guard Patrol System lies in its accompanying software, which transforms raw data into actionable insights. While specific software names may vary (e.g., GS-01 Reports Lite, GS-02 DCC DigiTool Call Center), the core functionalities typically include:
- Comprehensive Data Management: The software allows for the management of guards, patrol routes, locations, and events.
- Automated Report Generation: Generates a variety of reports, including:
- Patrol Reports: Detailed logs of each scanned checkpoint, including timestamps, confirming the guard’s presence.
- Exception Reports: Highlights missed checkpoints, late arrivals, or unauthorized deviations from the planned patrol route, instantly flagging potential issues.
- Event Reports: Records specific events logged by the guard (e.g., maintenance issues, suspicious activity).
- Performance Analysis: Provides insights into guard efficiency, adherence to schedules, and overall patrol effectiveness.
- Graphical Representation: Often includes visual aids like charts and graphs to quickly identify trends and anomalies.
- User-Friendly Interface: Designed for ease of use, making it simple to navigate, configure, and extract information.
- Historical Data Archiving: Stores patrol data for long-term record-keeping and auditing purposes.
Ensuring Your Guards Are Not Sleeping
The Rosslare Guard Patrol System is a powerful deterrent against slacking and a tool for promoting accountability. By implementing this system, you can:
- Verify Patrol Completion: Directly confirm that guards are visiting all designated checkpoints at the required times.
- Identify Missed or Delayed Patrols: Quickly spot any instances where a guard deviates from their assigned route or schedule, allowing for immediate corrective action.
- Promote Accountability: Guards know their movements are being accurately recorded, fostering a sense of responsibility and discouraging negligence.
- Improve Security Protocol Adherence: Ensures that critical areas are regularly inspected, enhancing overall security.
- Provide Evidence for Compliance: Generates detailed reports that can be used for internal audits, client requirements, or legal purposes.
In conclusion, the Rosslare Guard Patrol System offers a modern, reliable, and user-friendly solution for effective guard management. Its wireless installation, robust components, impressive battery life and storage, and comprehensive reporting software make it an invaluable asset for any organization seeking to enhance the vigilance and accountability of its security personnel.
